Casa > prodotti > Flatbed Cutter Plotter > Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed

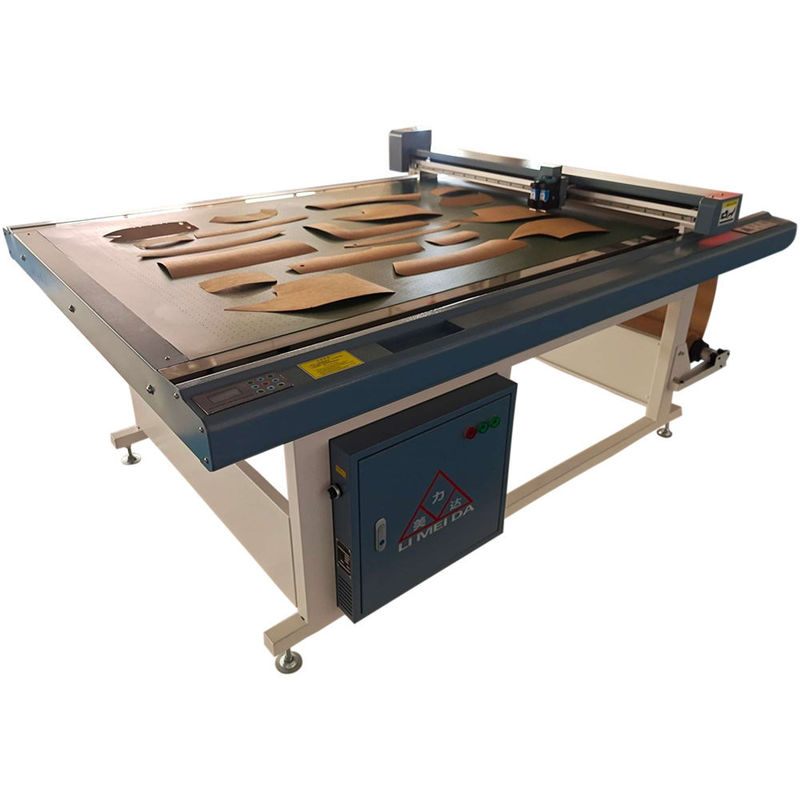

Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed

Dettagli del prodotto

Luogo di origine: Hubei, Cina

Marca: KAEMI or GM

Termini di pagamento e spedizione

Prezzo: $2,999.00/sets 1-2 sets

Ottenga il migliore prezzo
Dettagli del prodotto
Evidenziare:
Condizione:
Nuovo
Industria applicabile:
Alberghi, negozi di abbigliamento, stabilimenti di produzione, officine di riparazione di macchinari
Peso (kg):
400
Localizzazione dello showroom:
Turchia, Vietnam, Bangladesh, Cambogia
Ispezione video di uscita:
Fornito
Rapporto di prova della macchina:
Fornito
Tipo di commercializzazione:
Prodotto ordinario
Garanzia dei componenti principali:
2 anni
Componenti fondamentali:
Motore, motore, driver e scheda madre
Garanzia:
Un anno per l'intera macchina
Nome del prodotto:
Tagliatore a getto d'inchiostro a carta bianca Kraft Tagliatore di schemi
Cornice e custodia della macchina da taglio:
Cornice blu + Cassa argento
Materiale della macchina:
Tutti i banconi in alluminio
Materiali di taglio:
Carta bianca, carta kraft, cartone di plastica, cartone in fibra, ecc.
Strumenti da taglio:
Casella di inchiostro HP45, lame in acciaio tungsteno
Scopo di taglio:
1200*900 mm
Spessore di taglio:
≤3mm
Velocità di taglio:
1200 mm/s Max.
Dimensione della macchina da taglio:
1700*1450*1100 mm
Formati di file di lavoro:
PLT, DXF, HPGL, ecc ((Normale formati di file CAD)
Condizione:
Nuovo
Industria applicabile:
Alberghi, negozi di abbigliamento, stabilimenti di produzione, officine di riparazione di macchinari
Peso (kg):
400
Localizzazione dello showroom:
Turchia, Vietnam, Bangladesh, Cambogia
Ispezione video di uscita:
Fornito
Rapporto di prova della macchina:
Fornito
Tipo di commercializzazione:
Prodotto ordinario
Garanzia dei componenti principali:
2 anni
Componenti fondamentali:
Motore, motore, driver e scheda madre
Garanzia:
Un anno per l'intera macchina
Nome del prodotto:
Tagliatore a getto d'inchiostro a carta bianca Kraft Tagliatore di schemi
Cornice e custodia della macchina da taglio:
Cornice blu + Cassa argento
Materiale della macchina:
Tutti i banconi in alluminio
Materiali di taglio:
Carta bianca, carta kraft, cartone di plastica, cartone in fibra, ecc.
Strumenti da taglio:
Casella di inchiostro HP45, lame in acciaio tungsteno
Scopo di taglio:
1200*900 mm
Spessore di taglio:
≤3mm
Velocità di taglio:
1200 mm/s Max.
Dimensione della macchina da taglio:
1700*1450*1100 mm
Formati di file di lavoro:
PLT, DXF, HPGL, ecc ((Normale formati di file CAD)
Descrizione di prodotto

New Paper Pattern Kraft White Paper Board Flatbed Inkjet Cutter Pattern Cutter

Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 0

Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 1

Product Description

Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 2Main Features:
1. Unique Inkjet and Cutting Double Track Tracking System
2. Unique Paper Card Abnormal Monitoring System
3. Cutting Starting Points and Cutting Sequence Display System
4. Automatic Paging System
5. Fault Detection System for Whole Machine

Model JK1209P6 JK1509P6  JK1510P6 JK1512P6
Cutting Window(Fabric Scope) 1200*900mm 1500*900mm 1500*1000mm 1500*1200mm
Overall Dimension(mm) 1700*1450*1100 2000*1550*1100 2000*1550*1100 2000*1650*1100
Max Speed 1200mm/s 1200mm/s 1200mm/s 1200mm/s
Materials Fasten Vacuum Adsorption
Maximum Cutting Thickness 2mm
Cutting Materials White Paper, Kraft, Plastic Board, Fiberboard, etc
Printing Speed 60m2/h
Plot/Cut Tool HP45 Ink Box,Tungsten Steel Blade
Precision ≤0.01mm
Communication Port USB/RJ45 Ethernet; Shared Folder Print in LAN
File Formats HPGL(Compatible with Domestic and Interntional CAD Online)
Control Panel 9 Keys and LED Display(Chinese and English Switch)
Motor/Driver High Performance 3 Phrase Step-motor
Supply Voltage AC 220V/110V±10%, 50Hz
Working Environment Temperature:-30~50℃ or -22~122℉; Humidity: 10%--95% RH
Paper Thickness 150g-500g/m2
Application Areas Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc

Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 3

Product Show

Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 4Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 5Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 6Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 7Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 8Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 9Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 10Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 11Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 0Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 13Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 14

Packaging & Shipping

Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 15

Related Products
Company Information

Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 18

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.

"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 19

FAQ

Cutting Materials White Paper Board Flatbed Inkjet Cutter with 1200mm/s Cutting Speed 201. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
