Casa > prodotti > Flatbed Cutter Plotter > KAMEI 1209P5 Automatic Paper Pattern Cutting Machine Fast Inkjet Printing Garment Cutter

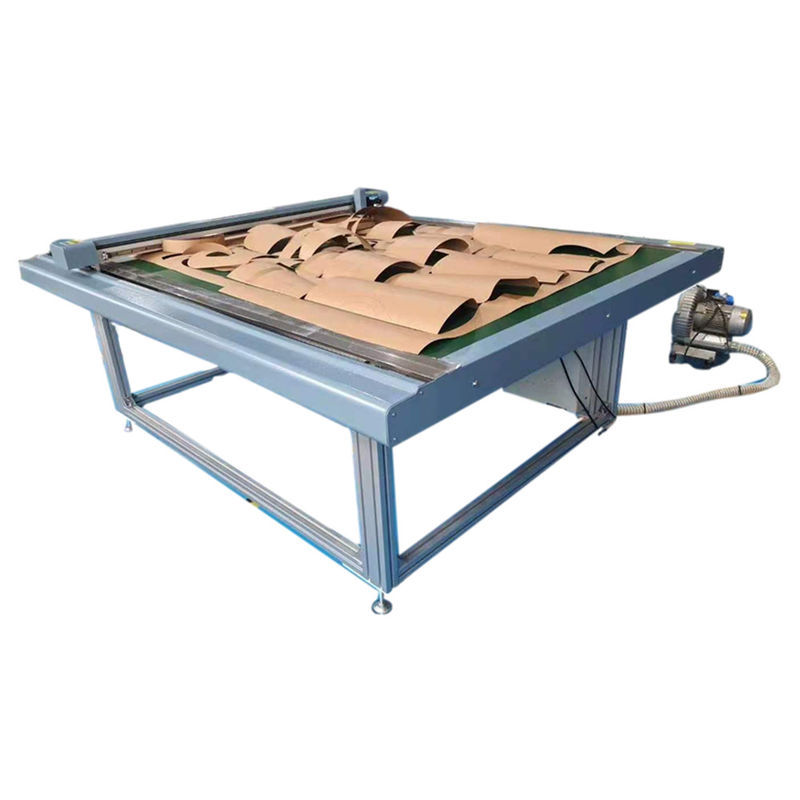

KAMEI 1209P5 Automatic Paper Pattern Cutting Machine Fast Inkjet Printing Garment Cutter

Dettagli del prodotto

Luogo di origine: Hubei, Cina

Marca: KAEMI or GM

Termini di pagamento e spedizione

Prezzo: $3,615.00/sets 1-2 sets

Ottenga il migliore prezzo
Dettagli del prodotto
Evidenziare:
Tipo:
Stampa a getto d'inchiostro
Dimensione di stampa:
1200*900
Industria applicabile:
Alberghi, negozi di abbigliamento, stabilimenti di produzione, officine di riparazione di macchinari
Condizione:
Nuovo
Tipo di piastra:
Stampa a piattaforma
utilizzo:
Stampa carta, stampatrice di etichette, stampatrice di carte, stampatrice di bollette, stampatrice d
Classificazione automatica:
Automazione
Colore & pagina:
colore unico
Voltaggio:
AC 220V/110V±10%, 50Hz/3,5KW
Dimensioni ((L*W*H):
1700*1570*1100 mm
Peso:
405 kg
Garanzia:
1 anno
Tipo di inchiostro:
Tipo universale HP45 Ink Box
Punti chiave di vendita:
Multifunzione
Tipo di commercializzazione:
Prodotto caldo 2019
Rapporto di prova della macchina:
Fornito
Ispezione video di uscita:
Fornito
Garanzia dei componenti principali:
2 anni
Componenti fondamentali:
Motore, motore, driver e scheda madre
Nome del prodotto:
KAMEI 1209P5 macchina per il taglio di disegni di carta a getto d'inchiostro
Cornice e custodia della macchina da taglio:
Cornice blu + Cassa argento
Materiale della macchina:
Tutti i banconi in alluminio
Materiali di taglio:
Carta bianca, carta kraft, cartone di plastica, cartone in fibra, ecc.
Strumenti da taglio:
Casella di inchiostro HP45, lame in acciaio tungsteno
Scopo di taglio:
1200*900 mm
Spessore di taglio:
≤3mm
Velocità di taglio:
1200 mm/s Max.
Dimensione della macchina da taglio:
1700*1570*1100 mm
Tipo:
Stampa a getto d'inchiostro
Dimensione di stampa:
1200*900
Industria applicabile:
Alberghi, negozi di abbigliamento, stabilimenti di produzione, officine di riparazione di macchinari
Condizione:
Nuovo
Tipo di piastra:
Stampa a piattaforma
utilizzo:
Stampa carta, stampatrice di etichette, stampatrice di carte, stampatrice di bollette, stampatrice d
Classificazione automatica:
Automazione
Colore & pagina:
colore unico
Voltaggio:
AC 220V/110V±10%, 50Hz/3,5KW
Dimensioni ((L*W*H):
1700*1570*1100 mm
Peso:
405 kg
Garanzia:
1 anno
Tipo di inchiostro:
Tipo universale HP45 Ink Box
Punti chiave di vendita:
Multifunzione
Tipo di commercializzazione:
Prodotto caldo 2019
Rapporto di prova della macchina:
Fornito
Ispezione video di uscita:
Fornito
Garanzia dei componenti principali:
2 anni
Componenti fondamentali:
Motore, motore, driver e scheda madre
Nome del prodotto:
KAMEI 1209P5 macchina per il taglio di disegni di carta a getto d'inchiostro
Cornice e custodia della macchina da taglio:
Cornice blu + Cassa argento
Materiale della macchina:
Tutti i banconi in alluminio
Materiali di taglio:
Carta bianca, carta kraft, cartone di plastica, cartone in fibra, ecc.
Strumenti da taglio:
Casella di inchiostro HP45, lame in acciaio tungsteno
Scopo di taglio:
1200*900 mm
Spessore di taglio:
≤3mm
Velocità di taglio:
1200 mm/s Max.
Dimensione della macchina da taglio:
1700*1570*1100 mm
Descrizione di prodotto

KAMEI 1209P5 Automatic Paper Pattern Cutting Machine Fast Inkjet Printing Garment Cutter

KAMEI 1209P5 Automatic Paper Pattern Cutting Machine Fast Inkjet Printing Garment Cutter 0

Product Description

KAMEI 1209P5 Automatic Paper Pattern Cutting Machine Fast Inkjet Printing Garment Cutter 1Main Features:
1. Unique Inkjet and Cutting Double Track Tracking System
2. Unique Paper Card Abnormal Monitoring System
3. Cutting Starting Points and Cutting Sequence Display System
4. Automatic Paging System
5. Fault Detection System for Whole Machine

Model GM-1209P5 GM-1509P5 GM-1510P5   GM-1512P5
Cutting Window(Fabric Scope) 1200*900mm 1500*900mm 1500*1000mm 1500*1200mm
Overall Dimension(mm) 1700*1570*1100 2000*1570*1100 2000*1570*1100 2000*1770*1100
Max Speed 1200mm/s 1200mm/s 1200mm/s 1200mm/s
Materials Fasten Vacuum Adsorption
Maximum Cutting Thickness 2mm
Cutting Materials White Paper, Kraft, Plastic Board, Fiberboard, etc
Printing Speed 60m2/h
Plot/Cut Tool HP45 Ink Box,Tungsten Steel Blade
Precision ≤0.01mm
Communication Port USB/RJ45 Ethernet; Shared Folder Print in LAN
File Formats HPGL(Compatible with Domestic and Interntional CAD Online)
Control Panel 9 Keys and LED Display(Chinese and English Switch)
Motor/Driver High Performance 3 Phrase Step-motor
Supply Voltage AC 220V/110V±10%, 50Hz
Working Environment Temperature:-30~50℃ or -22~122℉; Humidity: 10%--95% RH
Paper Thickness 150g-500g/m2
Application Areas Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc
Product Show

KAMEI 1209P5 Automatic Paper Pattern Cutting Machine Fast Inkjet Printing Garment Cutter 2KAMEI 1209P5 Automatic Paper Pattern Cutting Machine Fast Inkjet Printing Garment Cutter 3   KAMEI 1209P5 Automatic Paper Pattern Cutting Machine Fast Inkjet Printing Garment Cutter 4



KAMEI 1209P5 Automatic Paper Pattern Cutting Machine Fast Inkjet Printing Garment Cutter 5KAMEI 1209P5 Automatic Paper Pattern Cutting Machine Fast Inkjet Printing Garment Cutter 6

Packaging & Shipping

KAMEI 1209P5 Automatic Paper Pattern Cutting Machine Fast Inkjet Printing Garment Cutter 7

Related Products
Company Information

KAMEI 1209P5 Automatic Paper Pattern Cutting Machine Fast Inkjet Printing Garment Cutter 10

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.

"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

KAMEI 1209P5 Automatic Paper Pattern Cutting Machine Fast Inkjet Printing Garment Cutter 11

FAQ

KAMEI 1209P5 Automatic Paper Pattern Cutting Machine Fast Inkjet Printing Garment Cutter 121. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
