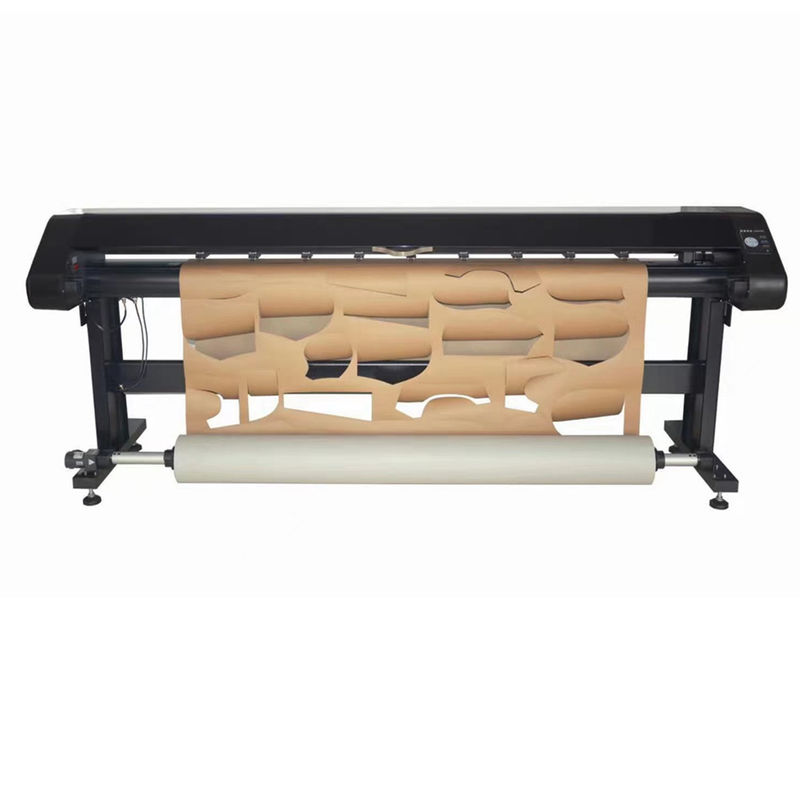

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable

Dettagli del prodotto

Luogo di origine: Hubei, Cina

Marca: KAEMI or OEM

Termini di pagamento e spedizione

Prezzo: $1,559.00/sets 1-4 sets

Ottenga il migliore prezzo
Dettagli del prodotto
Evidenziare:

100KG weight vertical cutter plotter

,

inkjet plotter printer with settable resolution

,

high-capacity vertical cutter for printing

Condizione:
Nuovo
Industria applicabile:
Negozi di abbigliamento, di materiali da costruzione, di fabbricazione, di riparazione di macchine,
Peso (kg):
100
Localizzazione dello showroom:
Turchia, Vietnam, Bangladesh, Cambogia
Ispezione video di uscita:
Fornito
Rapporto di prova della macchina:
Fornito
Tipo di commercializzazione:
Prodotto ordinario
Garanzia dei componenti principali:
1 anno
Componenti fondamentali:
Motore, scheda madre e autisti
Garanzia:
1 anno, 1 anno di garanzia per la macchina completa
Nome del prodotto:
120 a 180 cm 2 in 1 Tintore Tintore Verticale Tintore
Materiali per la stampa:
Libro bianco, Kraft, ecc.
Dimensione di taglio:
110-170 cm Larghezza
Dimensione della carta:
Larghezza da 120 a 180 cm
Strumento di stampa:
Cartucce di inchiostro HP45 a doppia testa normali
Larghezza di stampa:
120 a 180 cm Larghezza opzionale
Risoluzione di stampa:
150-600DPI, opzionale e impostabile sul menu
Tensione di alimentazione:
220V/50Hz
Formato del file CAD:
HP-GL, PLT, DXF, ecc.
Lama di taglio:
Lamella di taglio al tungsteno professionale
Condizione:
Nuovo
Industria applicabile:
Negozi di abbigliamento, di materiali da costruzione, di fabbricazione, di riparazione di macchine,
Peso (kg):
100
Localizzazione dello showroom:
Turchia, Vietnam, Bangladesh, Cambogia
Ispezione video di uscita:
Fornito
Rapporto di prova della macchina:
Fornito
Tipo di commercializzazione:
Prodotto ordinario
Garanzia dei componenti principali:
1 anno
Componenti fondamentali:
Motore, scheda madre e autisti
Garanzia:
1 anno, 1 anno di garanzia per la macchina completa
Nome del prodotto:
120 a 180 cm 2 in 1 Tintore Tintore Verticale Tintore
Materiali per la stampa:
Libro bianco, Kraft, ecc.
Dimensione di taglio:
110-170 cm Larghezza
Dimensione della carta:
Larghezza da 120 a 180 cm
Strumento di stampa:
Cartucce di inchiostro HP45 a doppia testa normali
Larghezza di stampa:
120 a 180 cm Larghezza opzionale
Risoluzione di stampa:
150-600DPI, opzionale e impostabile sul menu
Tensione di alimentazione:
220V/50Hz
Formato del file CAD:
HP-GL, PLT, DXF, ecc.
Lama di taglio:
Lamella di taglio al tungsteno professionale
Descrizione di prodotto

Hot Selling 120 to 180cm Width 2-in-1 Inkjet Cutter Plotter Vertical Cutter Plotter

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 0

Product Description

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 1Main Features:
Exclusive Software Algorithm,Machines Print more Precisely,Lines are Clearer Without Gratings and Horse Disks,Greatly Lower Fault Rate
Independent Output Management Software,Guarantee The better Connect of Machine and Computer
Hidden Heads of Ink and Knife
If The Machine Stops Abnormally,The Position Will be Recorded Automatically
Online Automatic Printing in The Queue

Technical Parameters
Product Model:                                     GM1200PQ GM1600PQ  GM1800PQ GM2000PQ
Maximum Printing Width                                     1200mm  1600mm 1800mm 2000mm
Maximum Cutting  Width 1100mm 1500mm 1700mm 1900mm
Ink Type: Dual Head 2 Universal ink cartridge HP45/6145A
Printing Density:  300-600D (optional ink-saving mode)
Printing Capacity:  200-230 square meters/hour (four-jet)
Line Quality:  Precise,smooth,seamless
Software Fompatibility:  HPGL, PLT, DXF, etc(special format can be customized)
Paper Feeding:

Precise paper feeding technology,invisible digital coding induction

system

Paper Loading:  Front paper receiving and placing system
Paper Receiving Mode:

Automatic collecting or no-collecting printing to fast print a large

number of patterns and save paper loading time

Host Structure:

American all-metal high-rigidity wear-resisting structure to ensure the life of the machine is 5 times

higher than similar production

Intelligent Ink Car:

Automatic origin record,servo control,ink consumption monitoring,

no seams,

clear lines

Paper Requires:  General paper(30g-250g)
Input Voltage:  AC220/110V 60HZ Power 400W; 110V-120V Power Optional
Communication Port: USB/interface  shared printing
Command Format:  HP-GL, PLT, DXF, etc
Product Show

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 2

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 3100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 4







100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 5



100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 6

Packaging & Shipping

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 7

Related Products
Company Information

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 10

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.

"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 11

FAQ

100KG Weight Vertical Cutter Plotter for Printing Resolution Optional and Settable 121. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
