Casa > prodotti > Stampa a getto d'inchiostro > 1150mm Printing Width accuracy Inkjet Plotter Printer for Automatic Grade Automatic

1150mm Printing Width accuracy Inkjet Plotter Printer for Automatic Grade Automatic

Dettagli del prodotto

Luogo di origine: Hubei, Cina

Marca: Kaemi

Termini di pagamento e spedizione

Prezzo: $1,600.00/sets 1-4 sets

Imballaggi particolari: Cassa di legno appositamente trattata e senza problemi per l'importazione ed esportazione.

Capacità di alimentazione: 200 set/set al mese

Ottenga il migliore prezzo
Dettagli del prodotto
Evidenziare:

1150mm wide inkjet plotter printer

,

automatic grade inkjet plotter

,

large format printing plotter

Tipo:
Stampa a getto d'inchiostro
Dimensione di stampa:
1200 mm, 1600 mm, 1900 mm, 2100 mm
Industria applicabile:
Garment Shops, Manufacturing Plant, Printing Shops, Advertizing Company
Condizione:
Nuovo
Tipo di piastra:
Stampa a rotoli
utilizzo:
Stampante di carta
Classificazione automatica:
Automazione
Colore & pagina:
colore unico
Voltaggio:
220 V
Dimensioni ((L*W*H):
198*110*70cm a 270*110*70
Peso:
100 kg
Garanzia:
1 anno
Tipo di inchiostro:
Toner veloce
Punti chiave di vendita:
Alta precisione
Tipo di commercializzazione:
Nuovo prodotto 2022
Rapporto di prova della macchina:
Fornito
Ispezione video di uscita:
Fornito
Garanzia dei componenti principali:
2 anni
Componenti fondamentali:
Motore, motore
Nome del prodotto:
Stampa a getto d'inchiostro
Materiali per la stampa:
Libro bianco, Kraft, ecc.
Dimensione di taglio:
Da 700 mm a 1950 mm
Dimensione della carta:
Da 1300 mm a 2300 mm
Strumento di stampa:
H801 Cartuccia di inchiostro di grande capacità
Inchiostro del tipo a cartuccia:
Cartuccia di inchiostro continua, senza bisogno di sostituzione, può riempire l'inchiostro
Risoluzione di stampa:
150-600DPI, opzionale e impostabile sul menu
Tensione di alimentazione:
220V/50Hz
Formato del file CAD:
HP-GL
Modello:
GM-L3
Port:
Shangai/Shenzhen/Ningbo
Tipo:
Stampa a getto d'inchiostro
Dimensione di stampa:
1200 mm, 1600 mm, 1900 mm, 2100 mm
Industria applicabile:
Garment Shops, Manufacturing Plant, Printing Shops, Advertizing Company
Condizione:
Nuovo
Tipo di piastra:
Stampa a rotoli
utilizzo:
Stampante di carta
Classificazione automatica:
Automazione
Colore & pagina:
colore unico
Voltaggio:
220 V
Dimensioni ((L*W*H):
198*110*70cm a 270*110*70
Peso:
100 kg
Garanzia:
1 anno
Tipo di inchiostro:
Toner veloce
Punti chiave di vendita:
Alta precisione
Tipo di commercializzazione:
Nuovo prodotto 2022
Rapporto di prova della macchina:
Fornito
Ispezione video di uscita:
Fornito
Garanzia dei componenti principali:
2 anni
Componenti fondamentali:
Motore, motore
Nome del prodotto:
Stampa a getto d'inchiostro
Materiali per la stampa:
Libro bianco, Kraft, ecc.
Dimensione di taglio:
Da 700 mm a 1950 mm
Dimensione della carta:
Da 1300 mm a 2300 mm
Strumento di stampa:
H801 Cartuccia di inchiostro di grande capacità
Inchiostro del tipo a cartuccia:
Cartuccia di inchiostro continua, senza bisogno di sostituzione, può riempire l'inchiostro
Risoluzione di stampa:
150-600DPI, opzionale e impostabile sul menu
Tensione di alimentazione:
220V/50Hz
Formato del file CAD:
HP-GL
Modello:
GM-L3
Port:
Shangai/Shenzhen/Ningbo
Descrizione di prodotto

1150mm Printing Width Inkjet Plotter Inkjet Printer For Factory1150mm Printing Width accuracy Inkjet Plotter Printer for Automatic Grade Automatic 0

Product Description

Main Features

1. High-speed Servo Control, Full Closed-loop Positioning (to Ensure Accurate Output of Various Unexpected Situations)

2. Independent Output Manager Supports File Background Automatic Queuing Printing

3. Using advanced SOPC technology

4. Support breakpoint resume, ensure reliable data transmission and printing

5. Automatic printing online

6. 2 Printing Heads/3 Printing Heads/4 Printing Heads Optional



Technical Parameters

Type

Double Spray

Three Spray

Four Spray

Product Model

B-165-2

B-185-2

B-205-2

B-160-3

B-180-3

B-200-3

B-155-4

B-175-4

B-195-4

Printing Width(cm)

165

185

205

160

180

200

155

175

195

Feeding Paper Width(cm)

170

190

210

170

190

210

170

190

210

Printing Speed

Two-way high speed 93 m2/h

Two-way high speed 131 m2/h

Two-way high speed 163 m2/h

Printing format

HPGL drawing language,compatible with domestic and foreign CAD software,special format can be customized

Print resolution

150-600DPI

Type of Nozzle

HP45A

Line quality

Clear,smooth,no seam,optional 1-8 lines

Nozzle Cleaning

Automatic cleaning before printing

Paper Loading

Front heightening device to support paper roll with diameter of 28cm

Paper Feeding

Hidden infrared precise paper feeding system,continuous 700 meters without deviation

Receiving and Delivering Paper

Unattended automatic paper receiving and feeding

Print Media

40-80g,ordinary roll printing paper;80-250g,single brown paper

Communication Interface

Network port,multiple computers can separately control printing

Power Supply Voltage

220V/50Hz

Button Panel

Press the keys operation,simple,convenient,durable

Machine Structure

Die standardized metal structure,high precision and long life

Output Center

1.support manual or automatic printing 2.optional ink-saving mode 3.support online printing

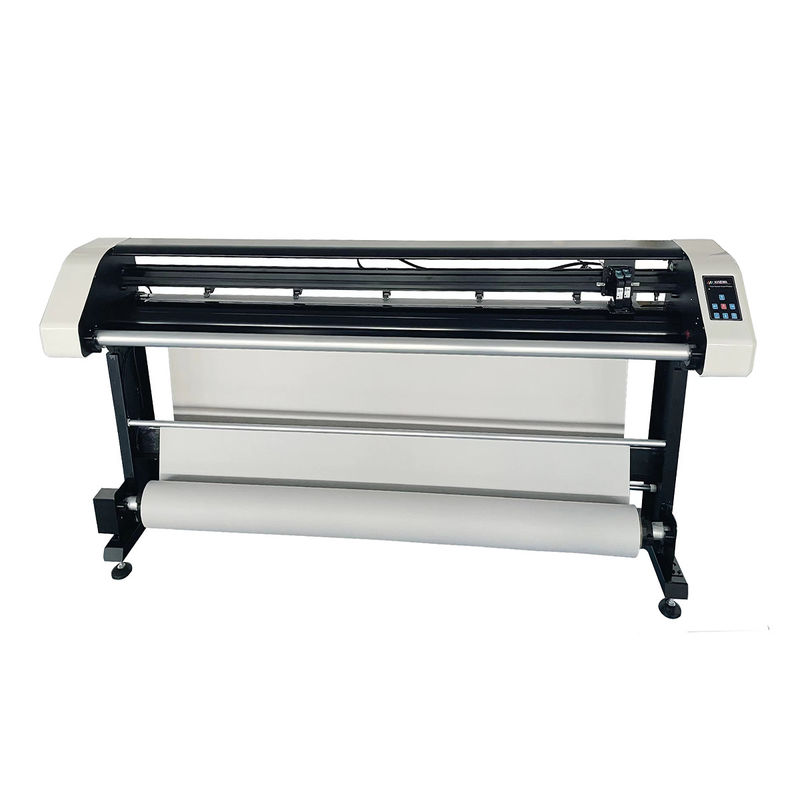

Product Show

1150mm Printing Width accuracy Inkjet Plotter Printer for Automatic Grade Automatic 1

1150mm Printing Width accuracy Inkjet Plotter Printer for Automatic Grade Automatic 21150mm Printing Width accuracy Inkjet Plotter Printer for Automatic Grade Automatic 3









 1150mm Printing Width accuracy Inkjet Plotter Printer for Automatic Grade Automatic 4



Related Products
Company Information

1150mm Printing Width accuracy Inkjet Plotter Printer for Automatic Grade Automatic 9

Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.

"The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.

FAQ

1150mm Printing Width accuracy Inkjet Plotter Printer for Automatic Grade Automatic 101. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric cutter/graph plotter in this field for 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
